CE Approval Shaded Pole Motor / Durable Evaporator Fan Motor YZF82 - 26

Name: CE Approval Shaded Pole Motor Durable Evaporator Fan Motor YZF82 26
Brand: trusTec
Price: 1 USD

Brand Name : trusTec

Model Number : YZF2-13-26

Certification : CE

Place of Origin : China

MOQ : 200pcs

Price : Negotiable (EXW/FOB/CNF/CIF)

Payment Terms : T/T, L/C

Supply Ability : 100,000 pcs per month

Delivery Time : 15-20 work days after order confirmation.

Packaging Details : Standard export carton packing, foam board inside for protection.

Product : Shaded Pole Fan Motor

Application : radiator, evaporator

Watts : 2 W

Volts : 220-240 V

Frequency : 50/60Hz

Pole : 4

Speeds : 1300 RPM

Input Power : 20W

ODM Solutions : ODM Solutions: Customized AC and EC motors

Contact Now

CE approval shaded pole evaporator fan motor YZF82-26

1.Work service pattern: Continuously
2.Lower noise and highly Efficiency

Product Description
YZF series motors are shaded pole motors with single phase, 4 pole and running at rated voltage of 220-240V, 50/60Hz or 110V, 60Hz. They are widely used in the radiator, evaporator and other refrigeration equipment.
The output power is from 2W to 34W, which is relative to the stack length and coil parameters.
The insulation class of motors is B, and the protection class is IP42. On request F, IP44 is available.
The applicable ambient temperature is from -30℃~50℃.

The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃±5℃ for output power above 10W.
The standard motors adopt sleeve bearing, suggest install these motors horizomtally. On request motors can be furnished with ball bearing.
The average service life of motors is over 20000 hours.
All of shaded pole motors pass CE approval.
The series products have two design models including separated type and integral type, please indicate your requirement.
Before operating the motor, make sure the earth wire of the motor connected with the external grounding device.

Model Instruction
CE Approval Shaded Pole Motor / Durable Evaporator Fan Motor YZF82 - 26
Technical Parameters:

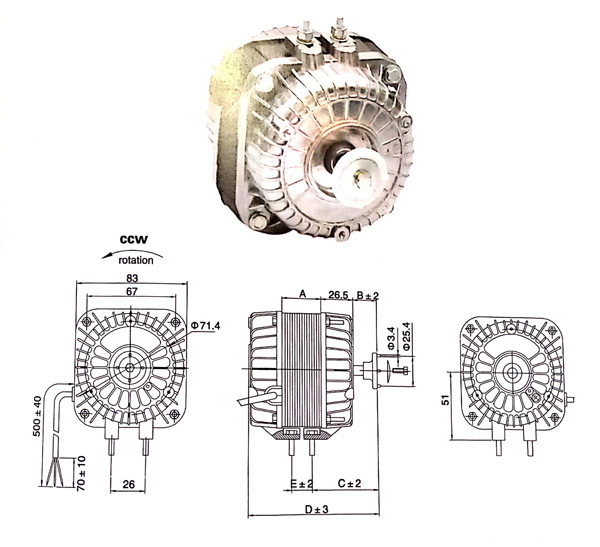

Model	Voltage /V	Frequency /Hz	Input Power /W	Output Power /W	Current /A	Speed /RPM	Air Volume /m³/h	Blade /mm	A /mm	B /mm	C /mm	D /mm	E /mm
YZF2-13-26	220-240	50/60	20	2	0.14	1300	205	φ172	13	13.5	43	78	/
YZF5-13-26	220-240	50/60	29	5	0.20	1300	455	φ200	13	13.5	43	78	/
YZF6-13-26	110-120	60	33	6	0.55	1550	510	φ200	13	13.5	43	78	/
YZF7-20-26	220-240	50/60	31	7	0.23	1300	640	φ230	19	14	43.5	84.5	/
YZF10-20-26	220-240	50/60	36	10	0.25	1300	650	φ230	19	14	43.5	84.5	/
YZF10-20-26	110-120	60	55	10	0.80	1550	800	φ230	19	14	43.5	84.5	/
YZF12-20-26	220-240	50/60	54	12	0.36	1300	690	φ230	19	14	43.5	84.5	/
YZF16-25-26	220-240	50/60	60	16	0.45	1300	760	φ254	25	15.5	45	92	/
YZF18-25-26	110-120	60	70	18	1.01	1550	940	φ254	25	15.5	45	92	/
YZF18-30-26	220-240	50/60	70	18	0.50	1300	1000	φ254	30	17.5	48.5	100.5	21
YZF18-30-26	110-120	60	75	18	1.10	1450	1000	φ254	30	17.5	48.5	100.5	21
YZF25-40-26	220-240	50/60	90	25	0.70	1300	1030	φ300	40	18.5	49.5	111.5	31
YZF25-40-26	110-120	60	100	25	1.40	1450	1030	φ300	40	18.5	49.5	111.5	31
YZF34-45-26	220-240	50/60	110	34	0.85	1300	1210	φ300	45	22.5	53.5	120.5	36
YZF34-45-26	110-120	60	110	34	1.50	1450	1210	φ300	45	22.5	53.5	120.5	36
